Compaction Grouting

Compaction grouting involves the precision injection of a low slump, mortar grout to consolidate loose, granular soils and stabilise sinkholes or subsurface voids.

Compaction grouting is used to stabilise and densify comprisable soils, loose or collapsed strata and rubble fills to increase bearing capacity and stabilise sinkholes and subsurface voids. The density of the soil is increased by injecting a stiff mortar under pressure through cased boreholes across the treatment area.

The degree of densification depends on the type of soil treated, secondary and tertiary treatment boreholes might be required to increase effectiveness.

What are the advantages of Compaction Grouting?

More cost effective than traditional methods such as removal and replacement or piling
Treatment can be carried out within existing basement or locations with restricted access
Capability to drill through dense layers to treat low strength strata at depth

Common Uses

Decrease or correct settlement
Increase bearing capacity
Stabilise sinkholes or subsurface voids
Suitable for rubble fills, poorly placed fills, loosened or collapsible soils, soluble rocks and liquefiable soils

The technique is used to stabilise and densify comprisable soils, loose or collapsed strata and rubble fills to increase bearing capacity and stabilize sinkholes and subsurface voids. The density of the soil is increased by injecting a stiff mortar under pressure through cased boreholes across the treatment area.

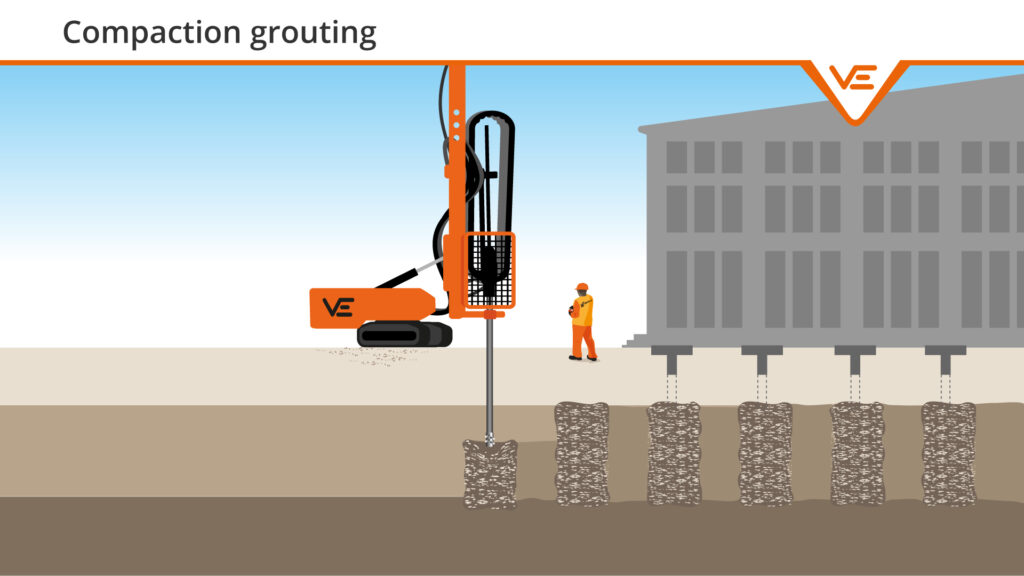

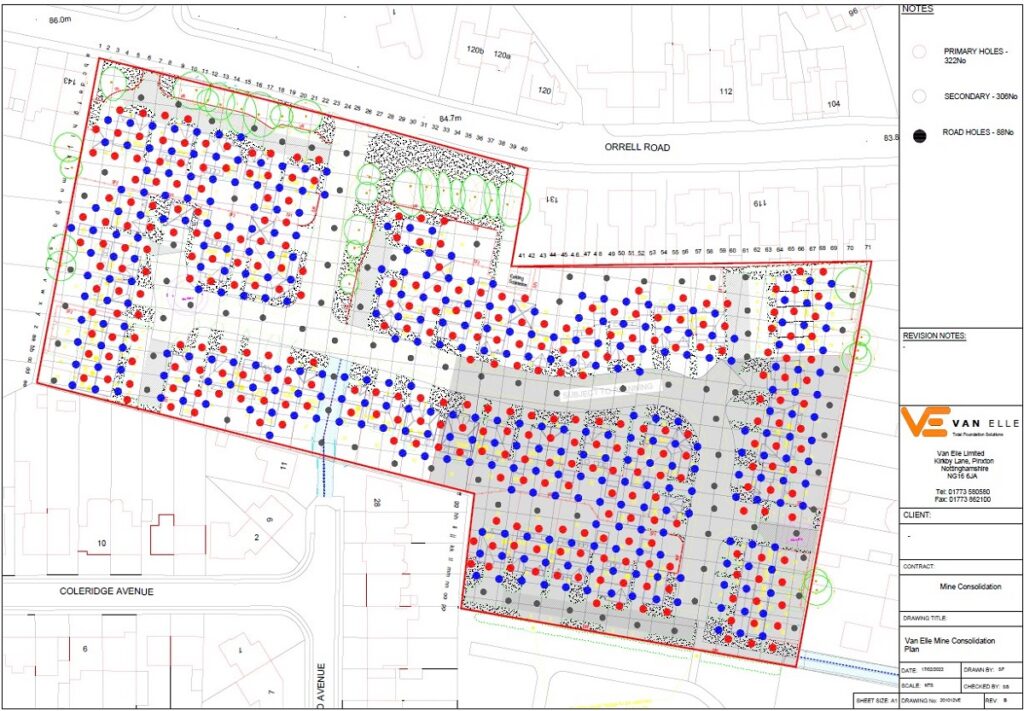

Primary cased boreholes are drilled within a predetermined grid pattern across the treatment area. An injection pipe is inserted into the cased boreholes and a searching grout mix is pumped under pressure (generally 0.5 to 1 Bar/m depth) commencing at the maximum treatment point. As the grout is pumped in, it gradually forms a bulb which displaces the surrounding soil, thereby increasing the relative density of the soil.

The temporary casing is withdrawn in successive stages of two metre and the grouting process repeated leaving a column of overlapping grout bulbs, as the soil is displaced. Compaction grouting can also be carried out from an existing basement or locations with limited headroom, and it is possible to drill through hard material to reach the low strength strata beneath for treatment.
